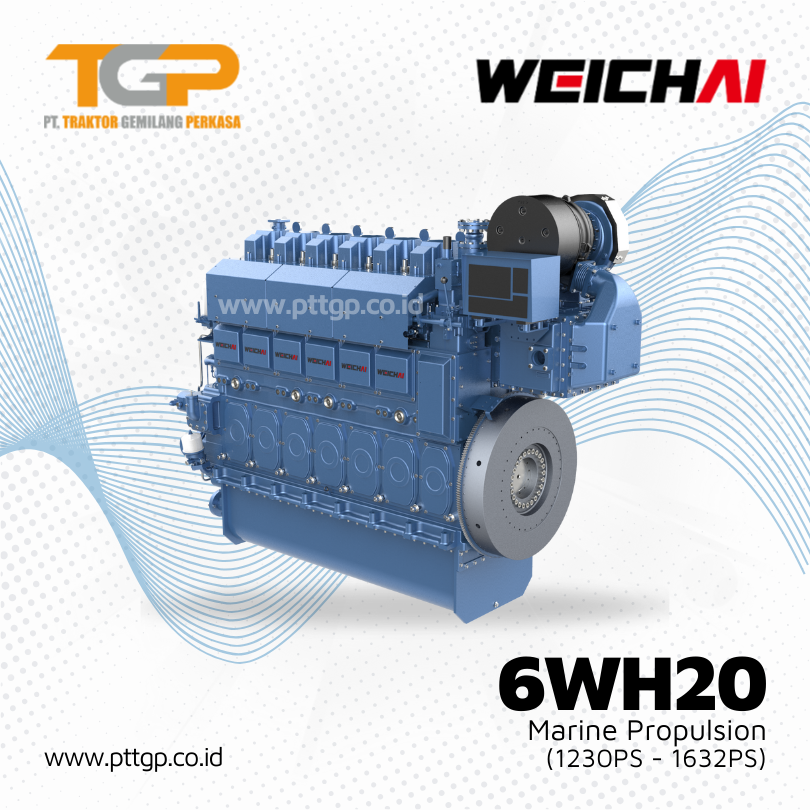

WEICHAI Marine Propulsion Engine
Marine propulsion engine with power 1230Ps – 1632Ps.
General Specifications
| Configuration | 6 Cylinders, in line, 4-stroke diesel |
| Bore x Stroke | 9.06 x 11.81 in (200 x 300 mm) |
| Displacement | 3450.9 cu in (56.55L) |
| Min. Fuel Consumption | 185g/(kW·h) |
| Emission | IMOⅡ |
Commercial Ratings
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating | Data Sheet |
| 6WH20LC1230-1 | 1230 | 905 | 1000 | TA | Mechanical | P1 | Download |
| 6WH20LC1360-1 | 1360 | 1000 | 1000 | TA | Mechanical | P1 | Download |
| 6WH20LC1520-1 | 1520 | 1118 | 1000 | TA | Mechanical | P1 | Download |
| 6WH20LC1632-1 | 1632 | 1200 | 1000 | TA | Mechanical | P1 | Download |
Main Dimensions & Dry Weight
| L(mm/in) | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) |
| 3532/139 | 1365/54 | 2642/104 | 9800/21605 |
● The delivery date of model with*should be negotiated specifically
