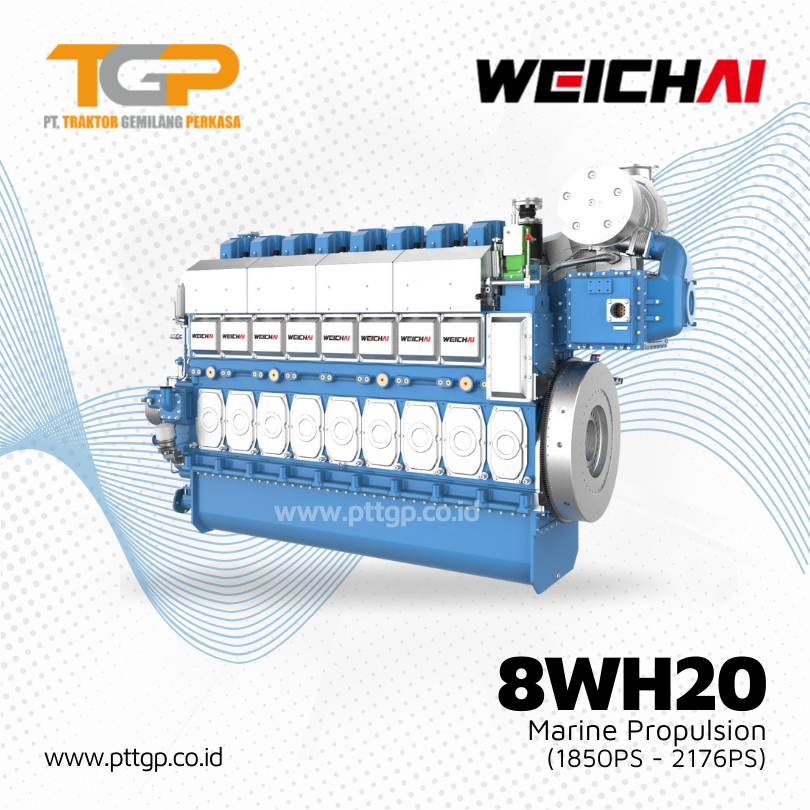

WEICHAI Marine Propulsion Engine
Marine propulsion engine with power 1850Ps – 2176Ps
General Specifications
| Configuration | 8 Cylinders, in line, 4-stroke diesel |
| Bore x Stroke | 7.88×11.81 in (200 x 300 mm) |
| Displacement | 4601.4 cu in (75.4L) |
| Min. Fuel Consumption | 185g/(kW·h) |
| Emission | IMO Ⅱ |
Commercial Ratings
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating | Data Sheet |
| 8WH20LC1850-1 | 1850 | 1360 | 1000 | TA | Mechanical | P1 | Download |
| 8WH20LC2000-1 | 2000 | 1470 | 1000 | TA | Mechanical | P1 | Download |
| 8WH20LC2176-1 | 2176 | 1600 | 1000 | TA | Mechanical | P1 | Download |
Main Dimensions & Dry Weight
| L(mm/in) | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) |
| 4132/163 | 1365/54 | 2642/104 | 12500/27500 |
●The delivery date of model with*should be negotiated specifically
