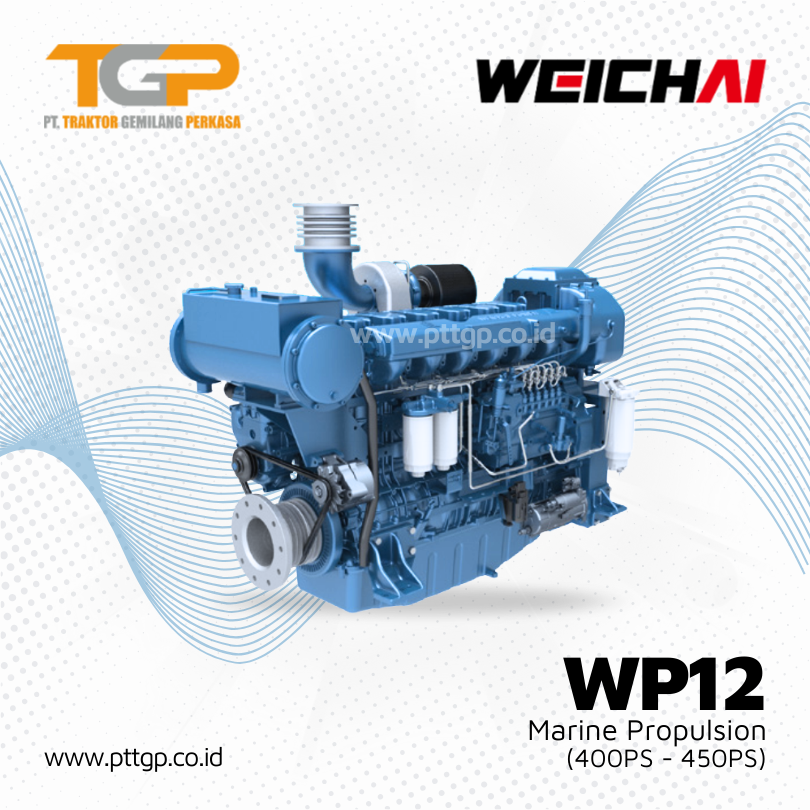

WEICHAI Marine Propulsion Engine
Marine propulsion engine with power 400Ps – 450Ps.
General Specifications
| Configuration | 6 Cylinders, in line, 4-stroke diesel |
| Power Output Size | SAE1/14’’ |
| Bore x Stroke | 4.96 x 6.10 in (126 x 155mm) |
| Displacement | 708 cu in (11.596L) |
| Min. Fuel Consumption | 194g/(kW·h) |
| Emission | IMOⅡ |
Commercial Ratings
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating | Data Sheet |
| WP12C400-18 | 400 | 295 | 1800 | TA | Mechanical | P1 | Download |
| WP12C450-21 | 450 | 330 | 2100 | TA | Mechanical | P1 | Download |
Main Dimensions & Dry Weight
| L(mm/in) | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) |
| 1695/67 | 858/34 | 1385/55 | 1200/2646 |
