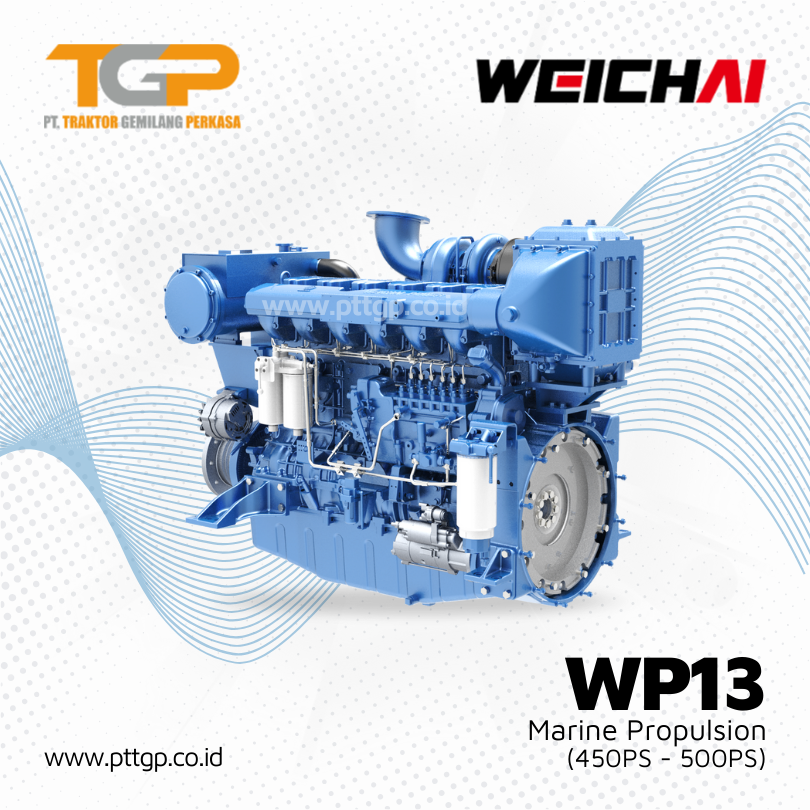

WEICHAI Marine Propulsion Engine
Marine propulsion engine with power 450Ps – 500Ps.
General Specifications
| Configuration | 6 Cylinders, in line, 4-stroke diesel |
| Power Output Size | SAE1/14’’ |
| Bore x Stroke | 5.0 x 6.5 in (127 x 165 mm) |
| Displacement | 765 cu in (12.54L) |
| Min. Fuel Consumption | 194g/(kW·h) |
| Emission | IMOⅡ |
Commercial Ratings
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating | Data Sheet |
| WP13C450-18 | 450 | 330 | 1800 | TA | Mechanical | P1 | Download |
| WP13C482-18 | 482 | 354 | 1800 | TA | Mechanical | P1 | Download |
| WP13C500-18 | 500 | 368 | 1800 | TA | Mechanical | P1 | Download |
Main Dimensions & Dry Weight
| L(mm/in) | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) |
| 1583/62 | 841/33 | 1388/55 | 1200/2646 |
