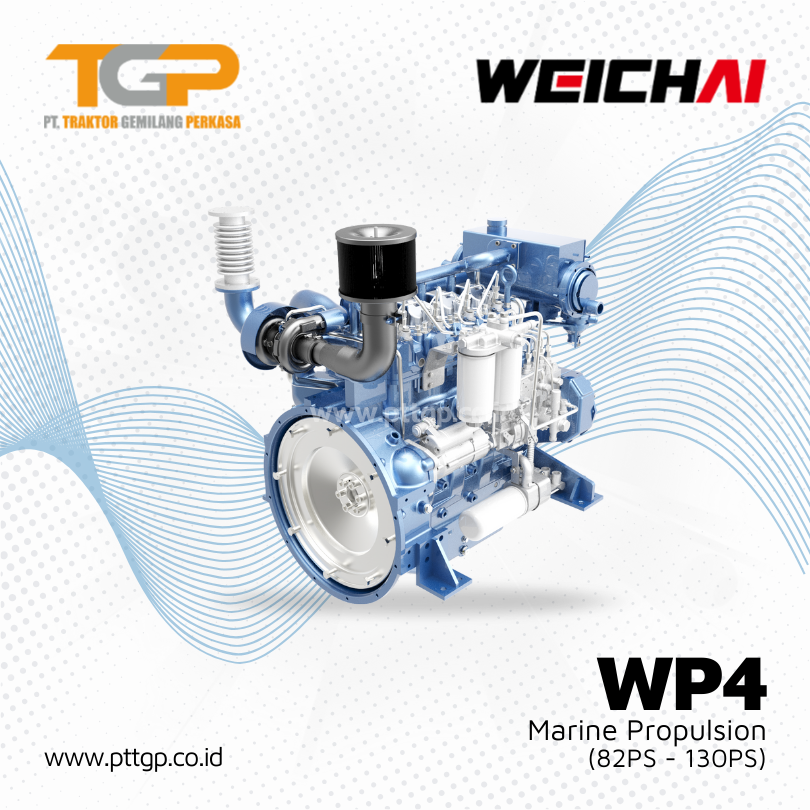

WEICHAI Marine Propulsion Engine
Marine propulsion engine with power 82Ps – 130Ps.
General Specifications
| Configuration | 4 Cylinders, in line, 4-stroke diesel |
| Power Output Size | SAE1/14″ |
| Bore x Stroke | 4.13 x 5.12 in (105 x 130 mm) |
| Displacement | 275 cu in (4.5L) |
| Min. Fuel Consumption | 200g/(kW·h) |
| Emission | IMOⅡ |
Commercial Rating
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating | Data Sheet |
| WP4C82-15 | 82 | 60 | 1500 | T | Mechanical | P1 | Download |
| WP4C95-18 | 95 | 70 | 1800 | T | Mechanical | P1 | Download |
| WP4C102-15 | 102 | 75 | 1500 | TA | Mechanical | P1 | Download |
| WP4C102-21 | 102 | 75 | 2100 | T | Mechanical | P1 | Download |
| WP4C120-18 | 120 | 88 | 1800 | TA | Mechanical | P1 | Download |
| WP4C130-21 | 130 | 95 | 2100 | TA | Mechanical | P1 | Download |
Main Dimensions & Dry Weight
| L(mm/in) | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) |
| 1063/42 | 818/32 | 1056/42 | 600/1323 |
