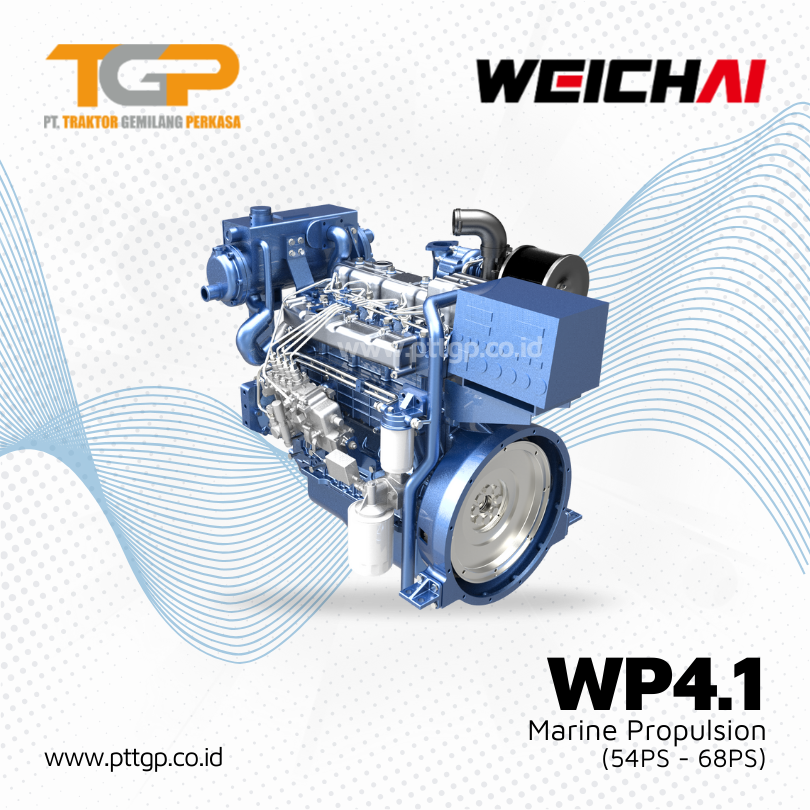

WEICHAI Marine Propulsion Engine
Marine propulsion engine with power 54Ps – 82Ps.
General Specification
| Configuration | 4 Cylinders, in line, 4-stroke diesel |
| Power Output Size | SAE3/11.5’’ |
| Bore x Stroke | 4.13 x 4.65 in (105 x 118 mm) |
| Displacement | 250 cu in (4.09L) |
| Min. Fuel Consumption | 212g/(kW·h) |
| Emission | IMOⅡ |
Commercial Rating
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating | Data Sheet |
| WP4.1C54-15 | 54 | 40 | 1500 | T | Mechanical | P1 | Download |
| WP4.1C68-15 | 68 | 50 | 1500 | T | Mechanical | P1 | Download |
| WP4.1C82-18 | 82 | 60 | 1800 | T | Mechanical | P1 | Download |
Main Dimensions & Dry Weight
| L(mm/in) | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) |
| 1062/42 | 625/25 | 918/36 | 400/882 |
