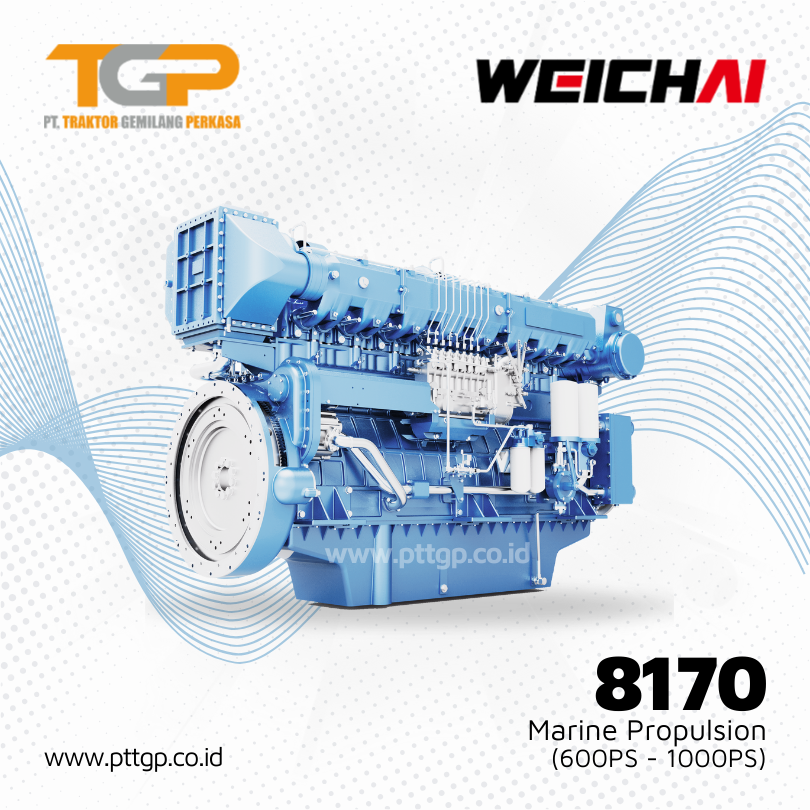

WEICHAI Marine Propulsion Engine
Marine propulsion engine with power 600Ps – 1000Ps.
General Specifications
| Configuration | 8 Cylinders, in line, 4-stroke diesel |
| Power Output Size | SAE0/16’’ |
| Bore x Stroke | 6.69 x 7.87 in (170 x 200 mm) |
| Displacement | 2216 cu in (36.32L) |
| Min. Fuel Consumption | 195g/(kW·h) |
| Emission | IMOⅡ |
Commercial Ratings
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating | Data Sheet |
| 8170ZC600-1 | 600 | 441 | 1000 | TA | Mechanical | P1 | Download |
| 8170ZC720-2 | 720 | 530 | 1200 | TA | Mechanical | P1 | Download |
| 8170ZC818-3 | 818 | 601 | 1350 | TA | Mechanical | P1 | Download |
| 8170ZC900-3 | 900 | 661 | 1350 | TA | Mechanical | P1 | Download |
| 8170ZC900-5 | 900 | 661 | 1500 | TA | Mechanical | P1 | Download |
| 8170ZC1000-5 | 1000 | 735 | 1500 | TA | Mechanical | P1 | Download |
Main Dimensions & Dry Weight
| L(mm/in) | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) |
| 2650/104 | 1044/41 | 1818/72 | 3800/8378 |
