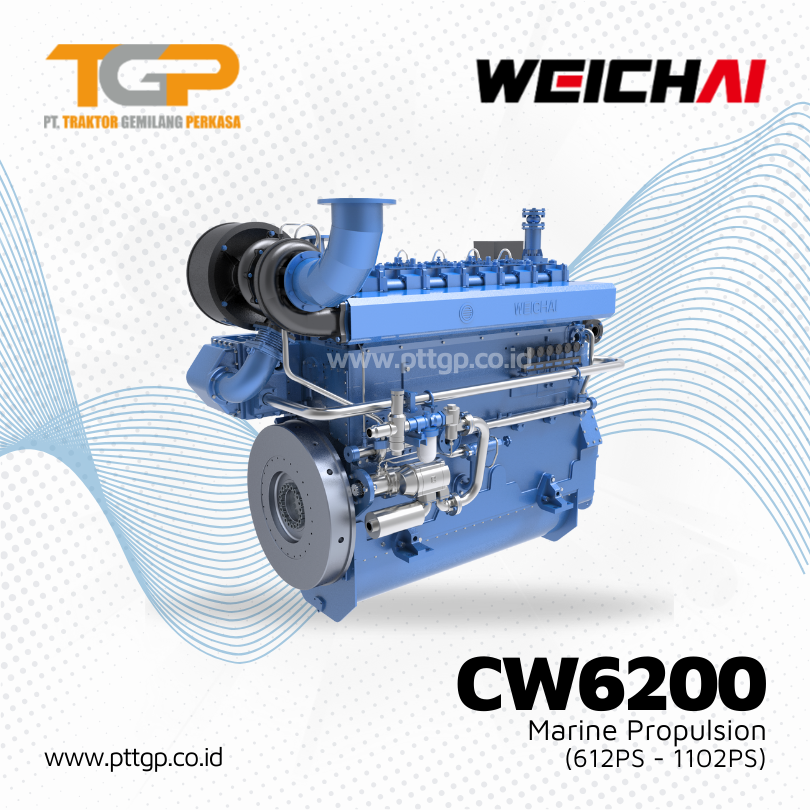

WEICHAI Marine Propulsion Engine
Marine propulsion engine with power 612Ps – 1102Ps.
General Specifications
| Configuration | 6 Cylinders, in line, 4-stroke diesel |
| Fuel | MGO/HFO |
| Bore x Stroke | 7.87 x 10.63 in (200 x 270mm) |
| Displacement | 3105 cu in (50.89L) |
| Min. Fuel Consumption | 200g/(kW·h) |
| Emission | IMOⅡ |
Commercial Ratings
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating | Data Sheet |
| CW6200ZC-7 | 612 | 450 | 750 | TA | Mechanical | P1 | Download |
| CW6200ZC | 816 | 600 | 1000 | TA | Mechanical | P1 | Download |
| XCW6200ZC | 950 | 698 | 1000 | TA | Mechanical | P1 | Download |
| XCW6200ZC-10 | 1102 | 810 | 1000 | TA | Mechanical | P1 | Download |
Main Dimensions & Dry Weight
| L(mm/in) | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) |
| 2828/111 | 1736/68 | 2412/95 | 6400-6500 / 14110-14330 |
