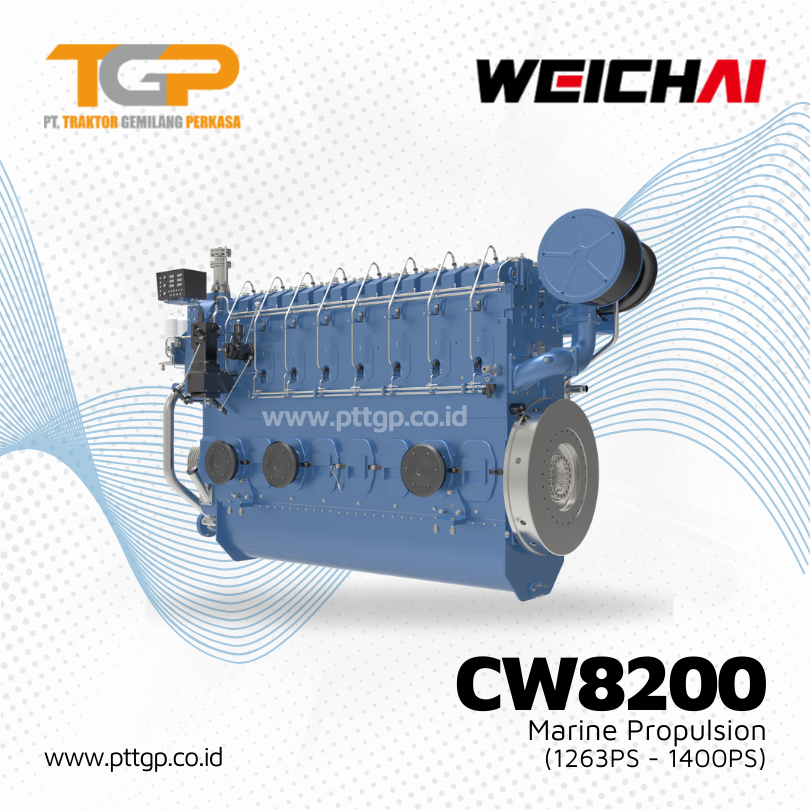

WEICHAI Marine Propulsion Engine
Marine propulsion engine with power 1263Ps – 1400Ps.
General Specifications
| Configuration | 8 Cylinders, in line, 4-stroke diesel |
| Fuel | MGO/HFO |
| Bore x Stroke | 7.87 x 10.63 in (200 x 270 mm) |
| Displacement | 4141 cu in (67.856L) |
| Min. Fuel Consumption | 200g/(kW·h) |
| Emission | IMOⅡ |
Commercial Ratings
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating | Data Sheet |
| XCW8200ZC | 1263 | 928 | 1000 | TA | Mechanical | P1 | Download |
| XCW8200ZC-1 | 1306 | 960 | 1000 | TA | Mechanical | P1 | Download |
| XCW8200ZC-10 | 1400 | 1030 | 1000 | TA | Mechanical | P1 | Download |
Main Dimensions & Dry Weight
| L(mm/in) | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) |
| 3388/133 | 1736/68 | 2412/95 | 7800/17196 |
