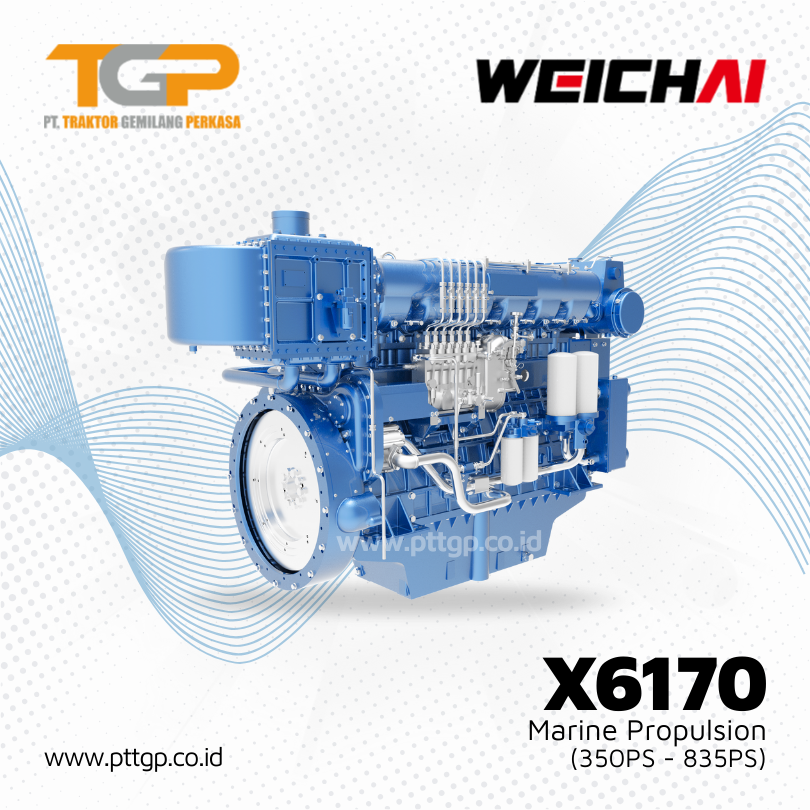

WEICHAI Marine Propulsion Engine
Marine propulsion engine with power 350Ps – 835Ps.
General Specifications
| Configuration | 6 Cylinders, in line, 4-stroke diesel |
| Power Output Size | SAE0/18’’ |
| Bore x Stroke | 6.69 x 7.87 in (170 x 200mm) |
| Displacement | 6.69 x 7.87 in (170 x 200mm) |
| Min. Fuel Consumption | 195g/(kW·h) |
| Emission | IMOⅡ |
Commercial Ratings
| Model | Ps | kW | rpm | Aspiration | Fuel System | Rating | Data Sheet |
| X6170ZC350-1 | 350 | 258 | 1000 | TA | Mechanical | P1 | Download |
| X6170ZC480-2 | 480 | 353 | 1200 | TA | Mechanical | P1 | Download |
| X6170ZC540-2 | 540 | 405 | 1500 | TA | Mechanical | P1 | Download |
| X6170ZC580-3 | 580 | 426 | 1350 | TA | Mechanical | P1 | Download |
| X6170ZC620-5 | 620 | 456 | 1500 | TA | Mechanical | P1 | Download |
| X6170ZC680-3 | 680 | 500 | 1350 | TA | Mechanical | P1 | Download |
| X6170ZC756-5 | 756 | 556 | 1500 | TA | Mechanical | P1 | Download |
| X6170ZC818-5 | 818 | 601 | 1500 | TA | Mechanical | P1 | Download |
| X6170ZC835-5 | 835 | 614 | 1548 | TA | Mechanical | P2 | Download |
Main Dimensions & Dry Weight
| L(mm/in) | W(mm/in) | H(mm/in) | Dry Weight (kg/lbs) |
| 2463/97 | 1200/47 | 1650/65 | 3100/6834 |
